Industrial V-Belts
Product Overview

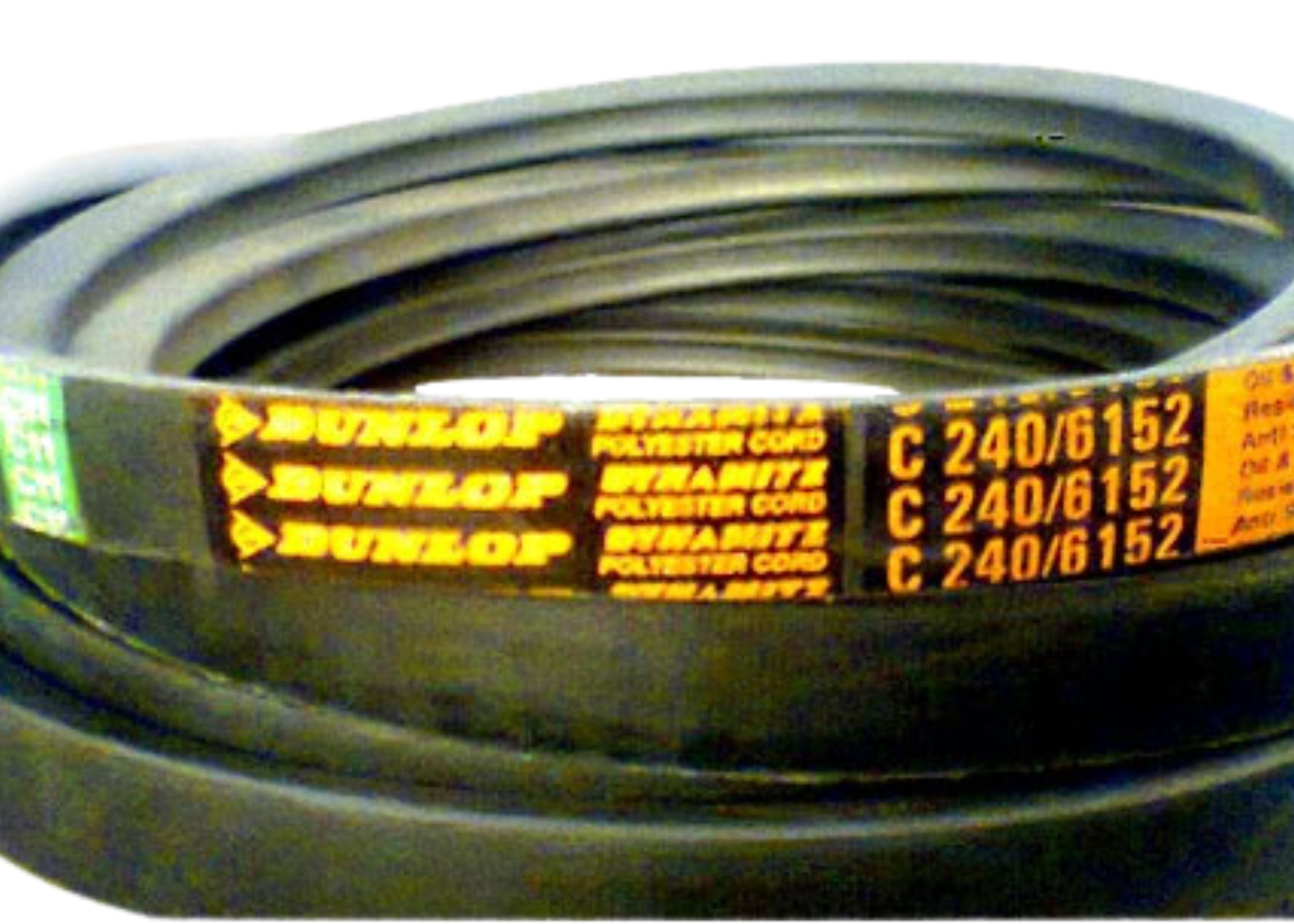

Industrial V-Belts
Dunlop India’s years of experience and expertise in power transmission under Indian conditions come together with state-of-the-art technology from Mitsuboshi of Japan, a world leader in the field, to produce Dunlop Dynamitz — the new generation V-belts. The need for high-performance belts having stability, particularly important when belts operate on the drive over long periods of time, will be met by the Dynamitz V-belt.

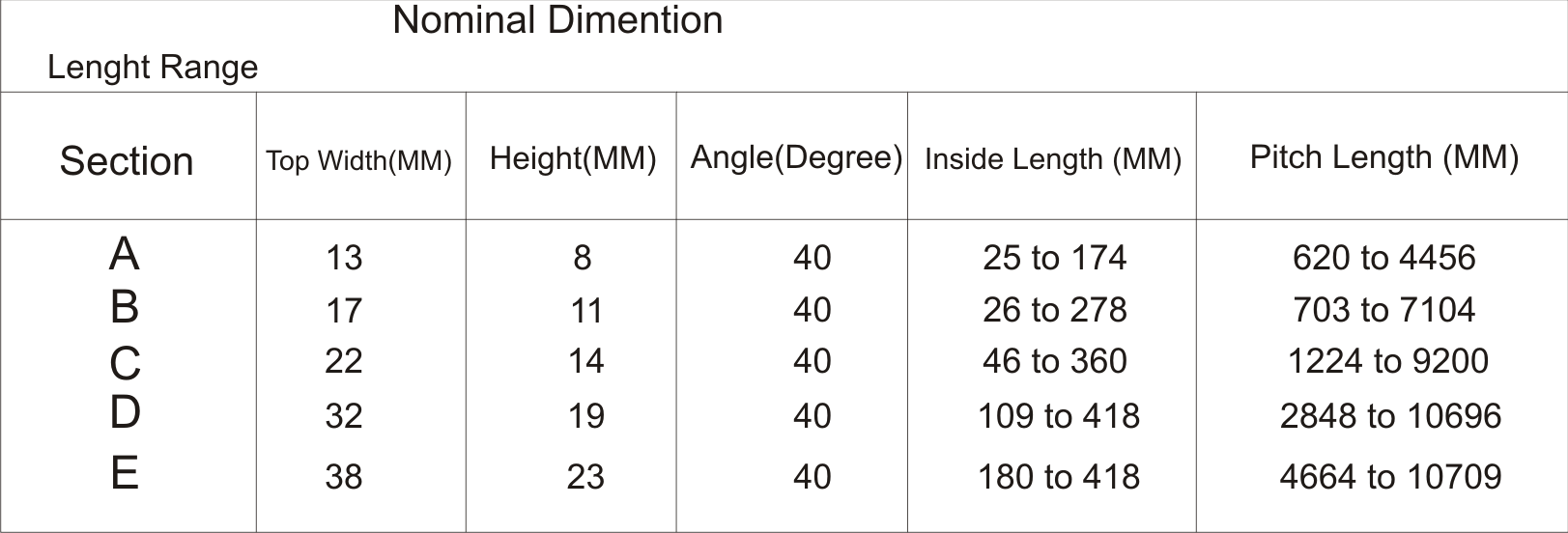

Dunlop Dynamitz polyester cord V-belts are available in A, B, C, D, and E sections up to size 418, SPA, SPB, SPC, SPZ, and double BB belts. The table below gives precise details of the same.
We Can offer Following Types of Nominal Dimension:

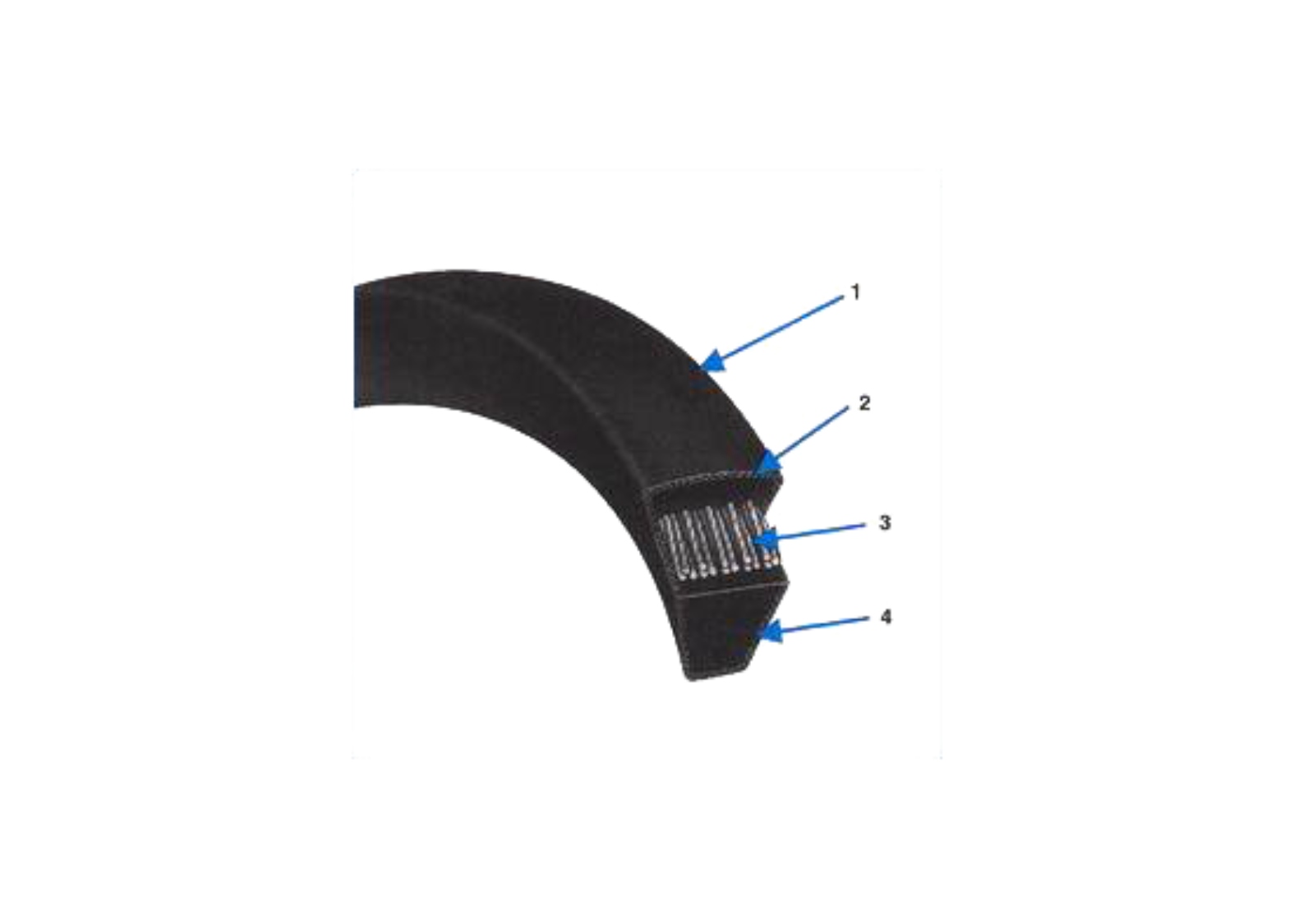

Wedge Belts
They offer high horsepower with a specially designed narrow top-width profile that saves space, reduces energy consumption, and is heat and oil resistant as well as statically conductive.

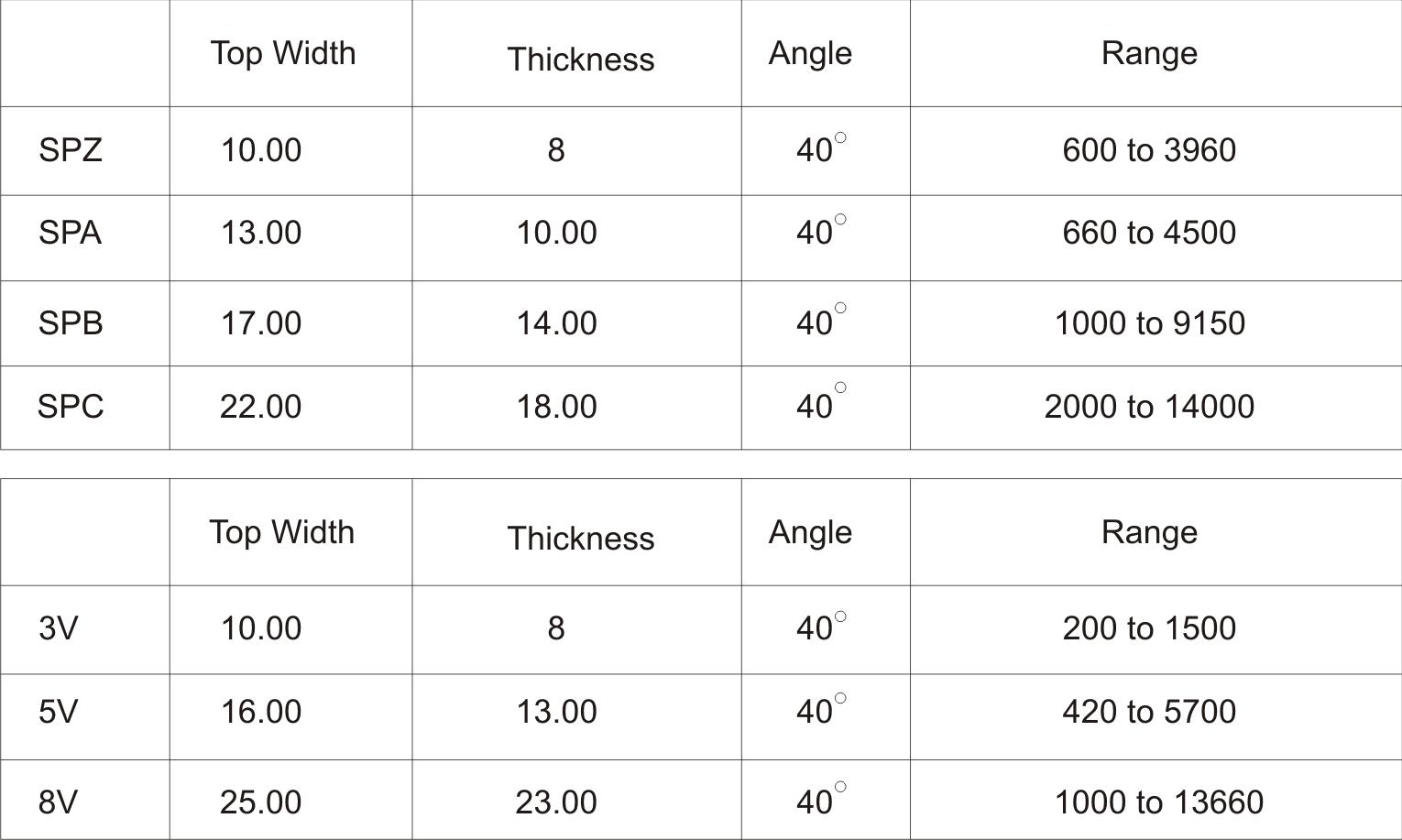

We can offer the following types of nominal dimensions:

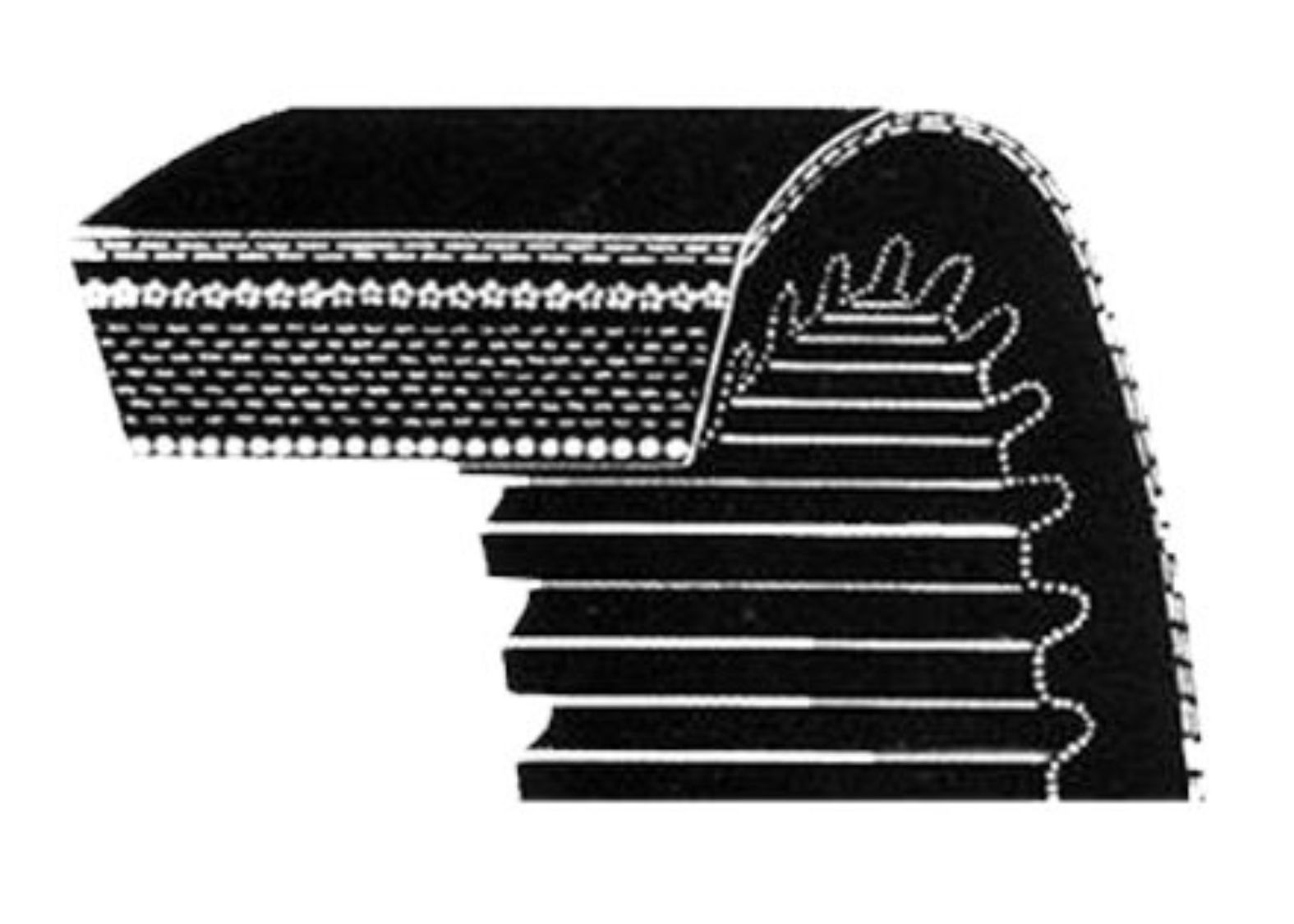

Variable Speed Belts
The strong construction is designed to carry high horsepower loads with maximum belt strength. It resists fatigue and shock, ensuring long service life. The belt provides excellent stability and reduces the need for frequent take-up adjustments.

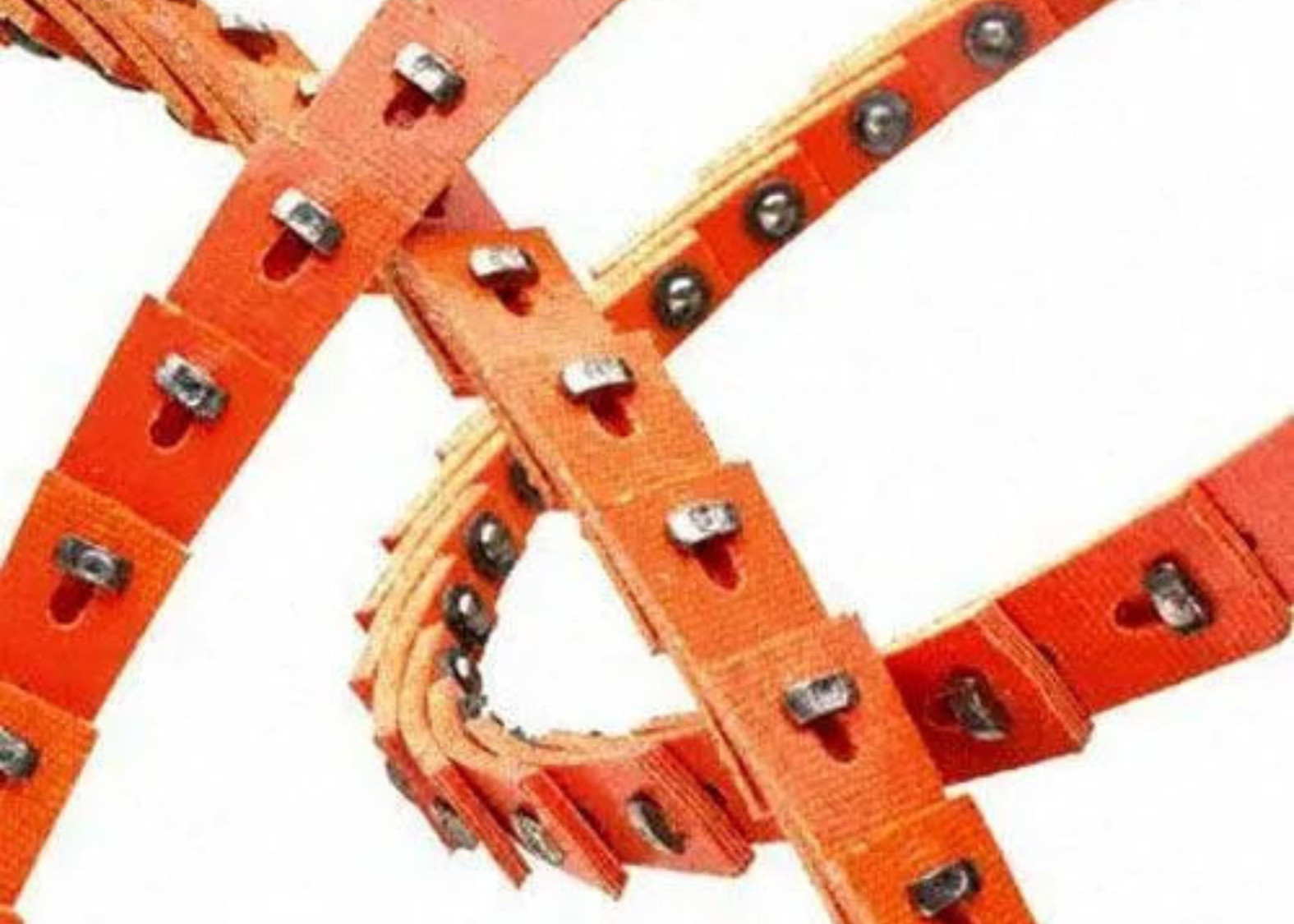

Link Belts
Each link consists of two holes and one tang, which is inserted into another link. As a result, each link transfers forces across three links instead of just one, as might normally be expected in linkage-type systems. This design not only adds a factor of safety but also helps distribute forces over a larger area, reducing stress concentration at a single point.
Additionally, the tangs are shaped in a trapezoidal form (similar to a V-belt), creating the internal cross-section of the belt.
Removing these links can be challenging and may require strong hands or the use of a simple pair of pliers. The pliers can be used to grip a link tang and twist it so that it can be inserted through another link, freeing it from the chain.

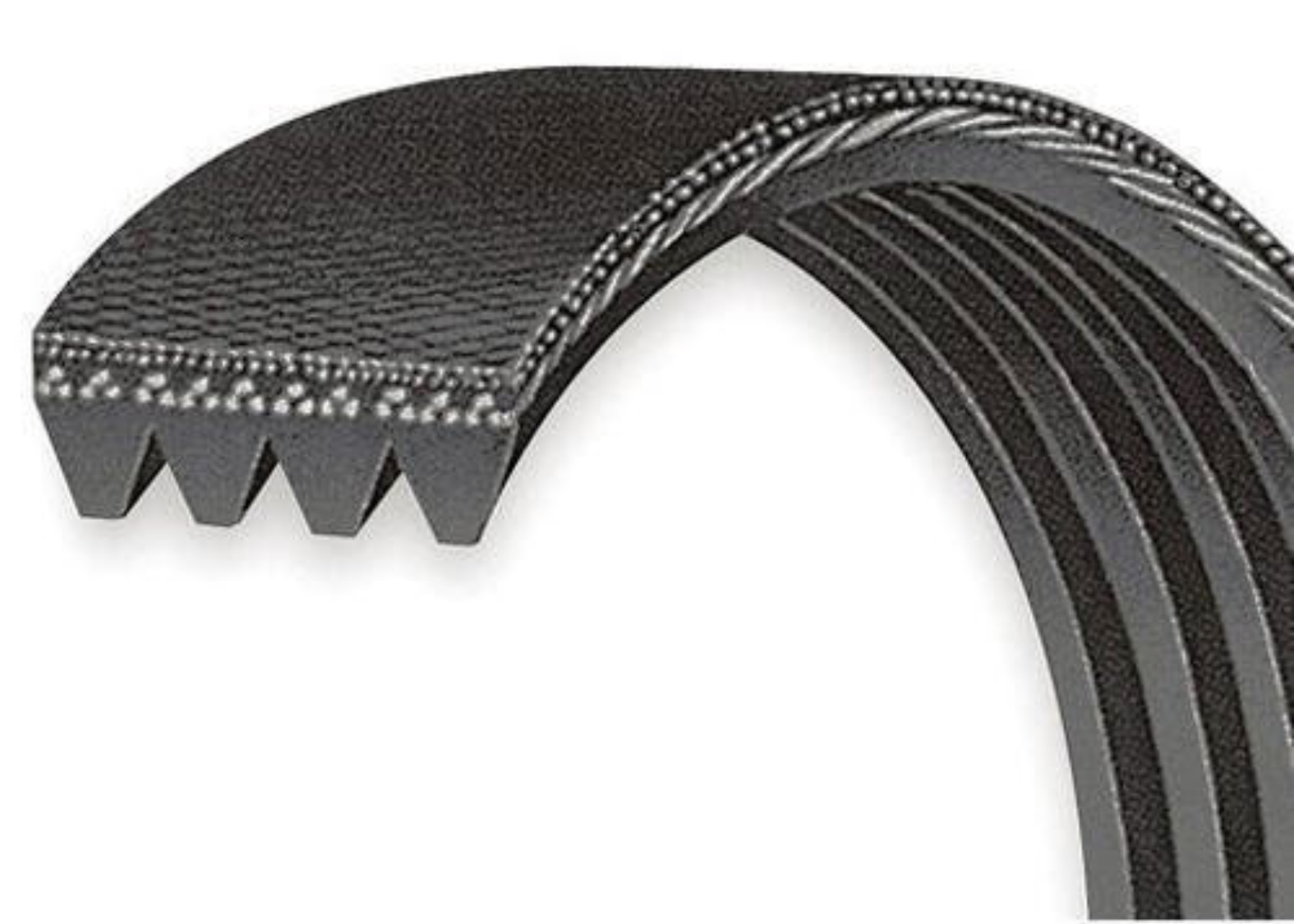

Poly V Belts
They provide smooth running and low-noise operation at high speeds, even with small pulley diameters. These belts are ideal for serpentine drive applications and ensure efficient power transmission with minimal vibration.
Available in sections: H, J, K, L & M

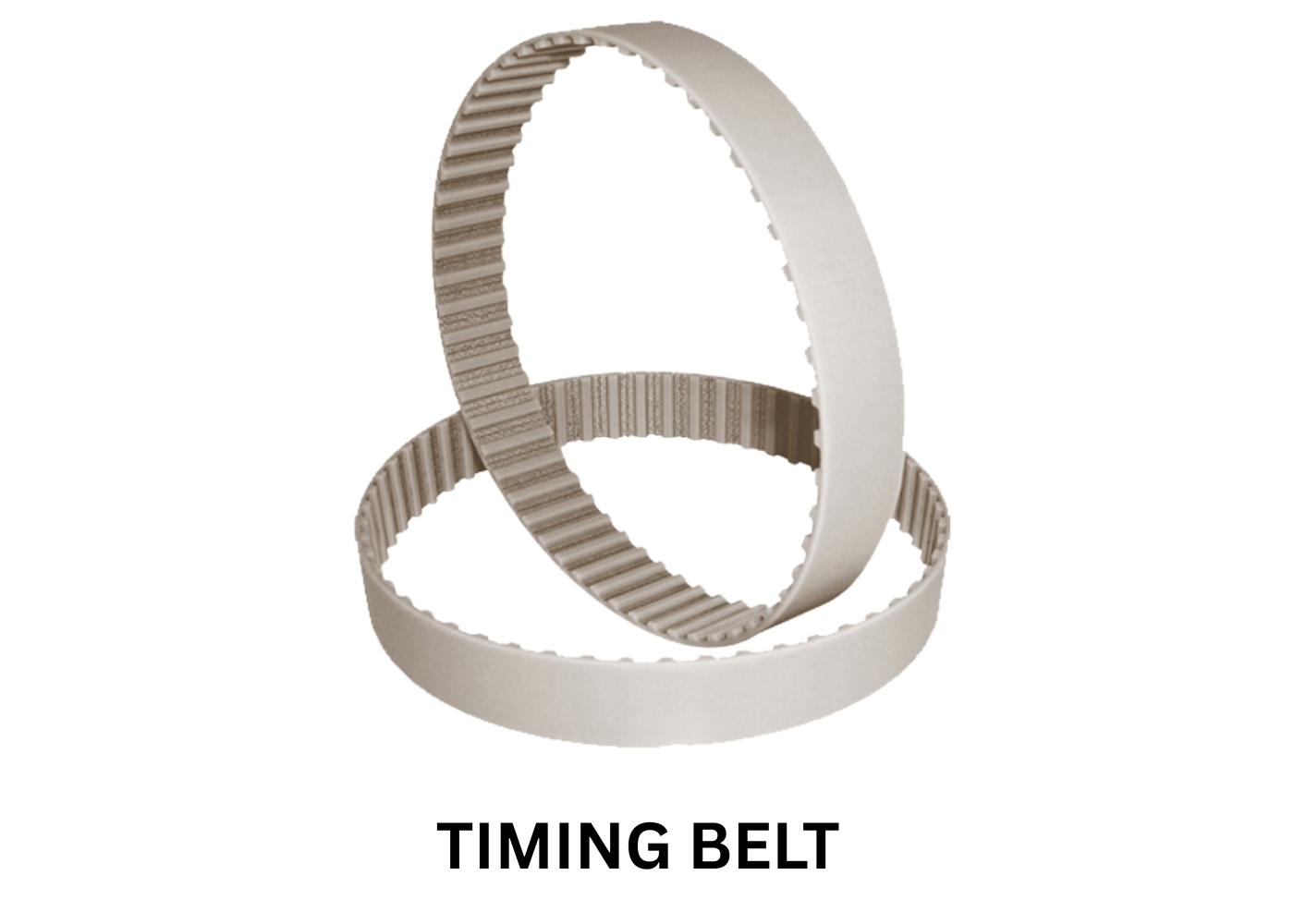

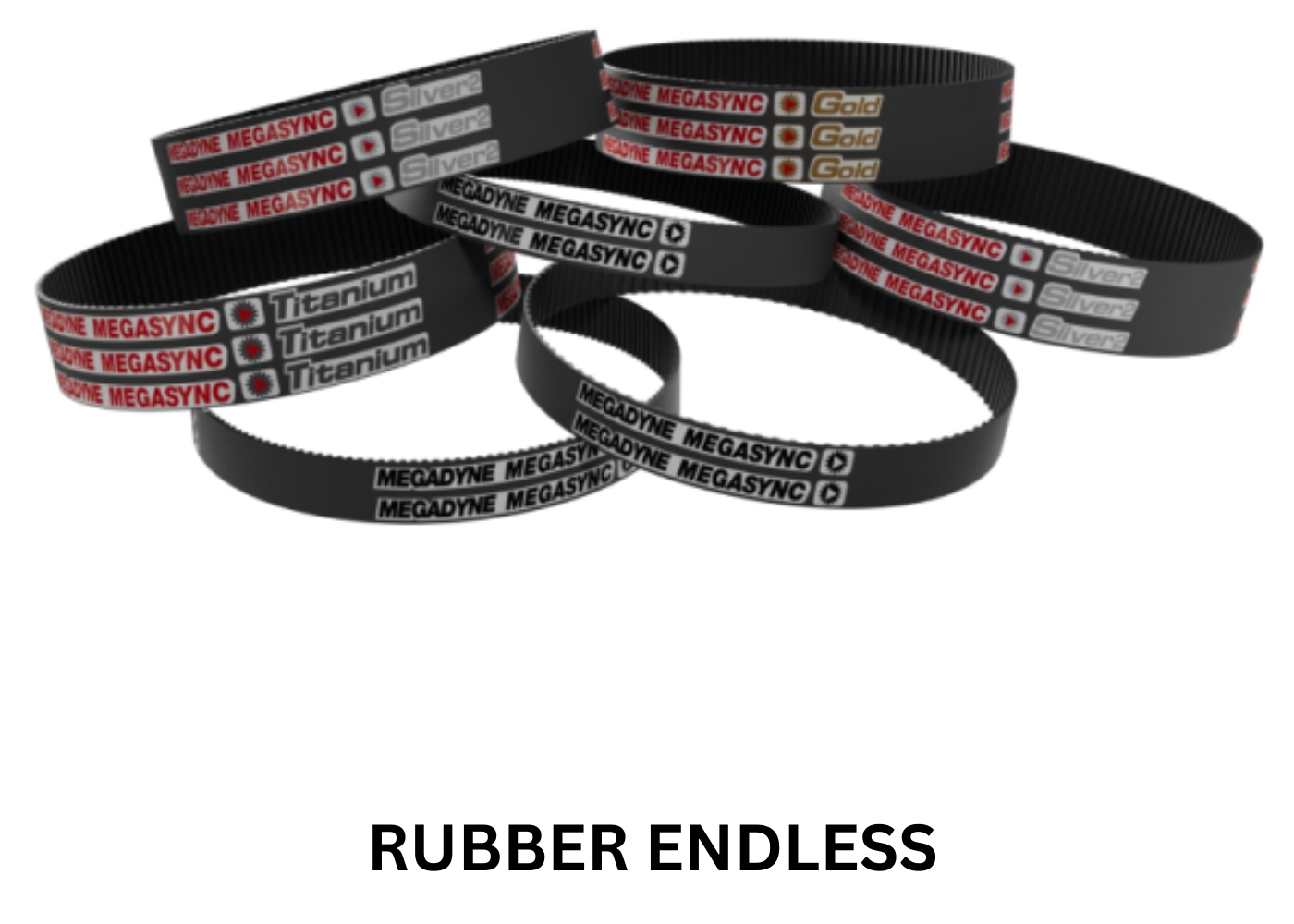

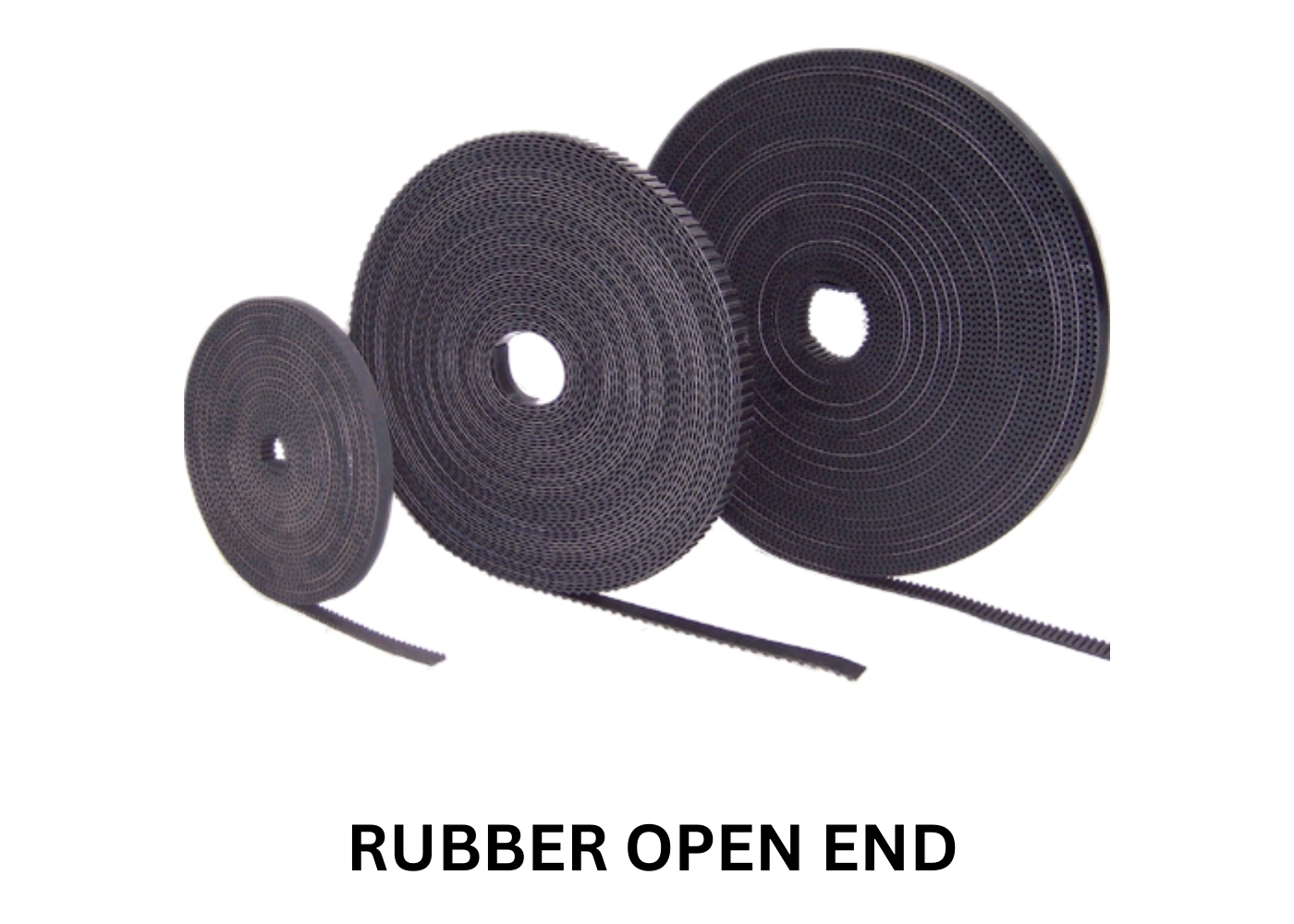

Timing Belt
